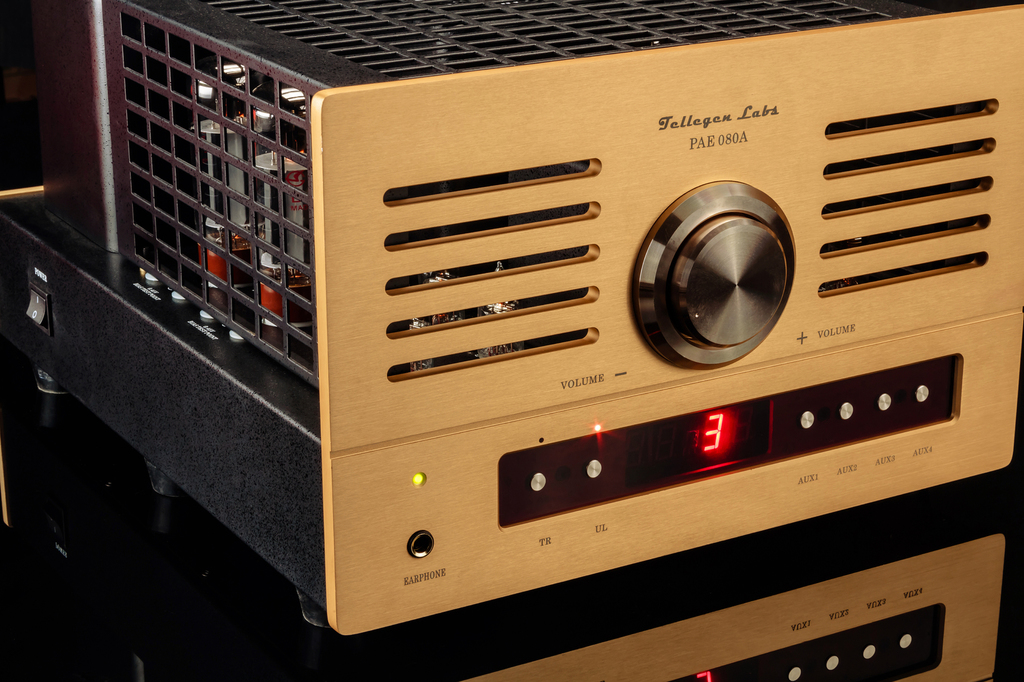

PAE080A

50W x 2 Stero Amplifier

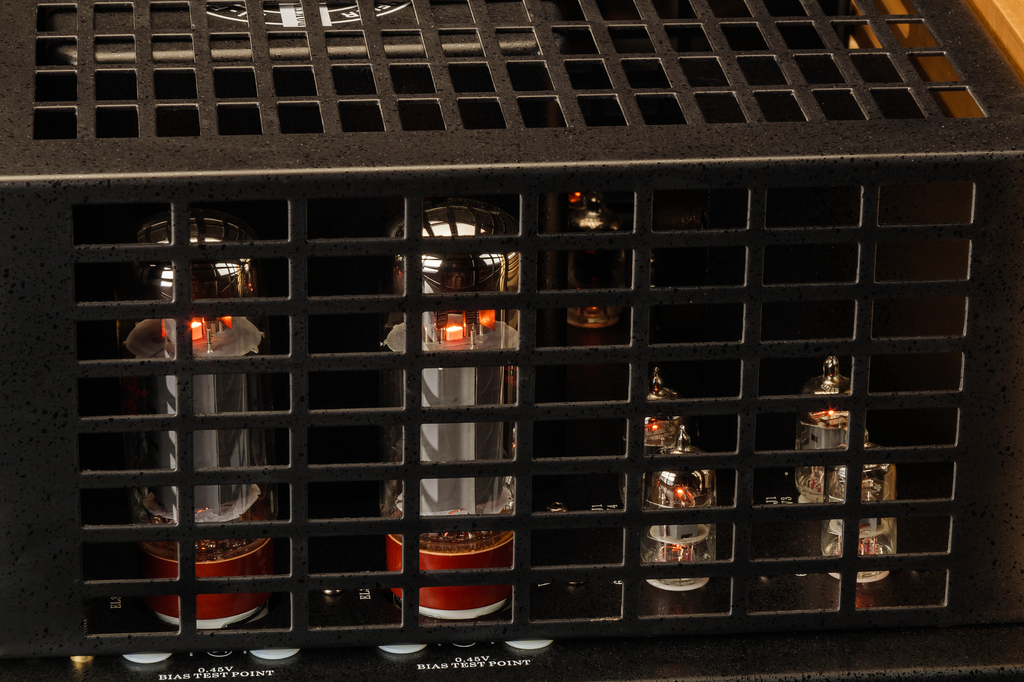

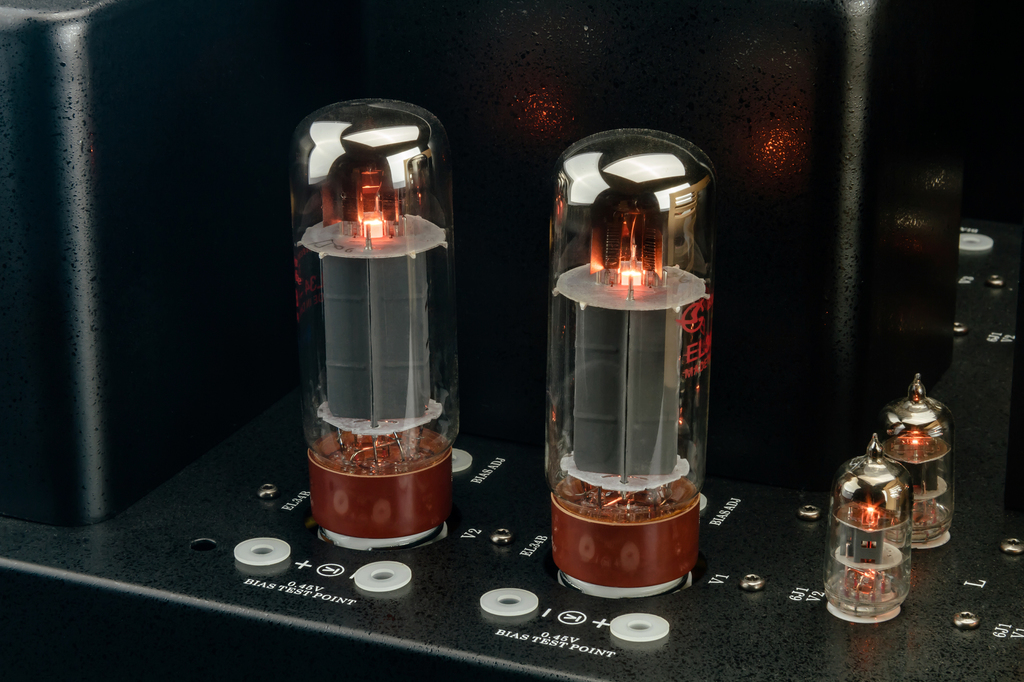

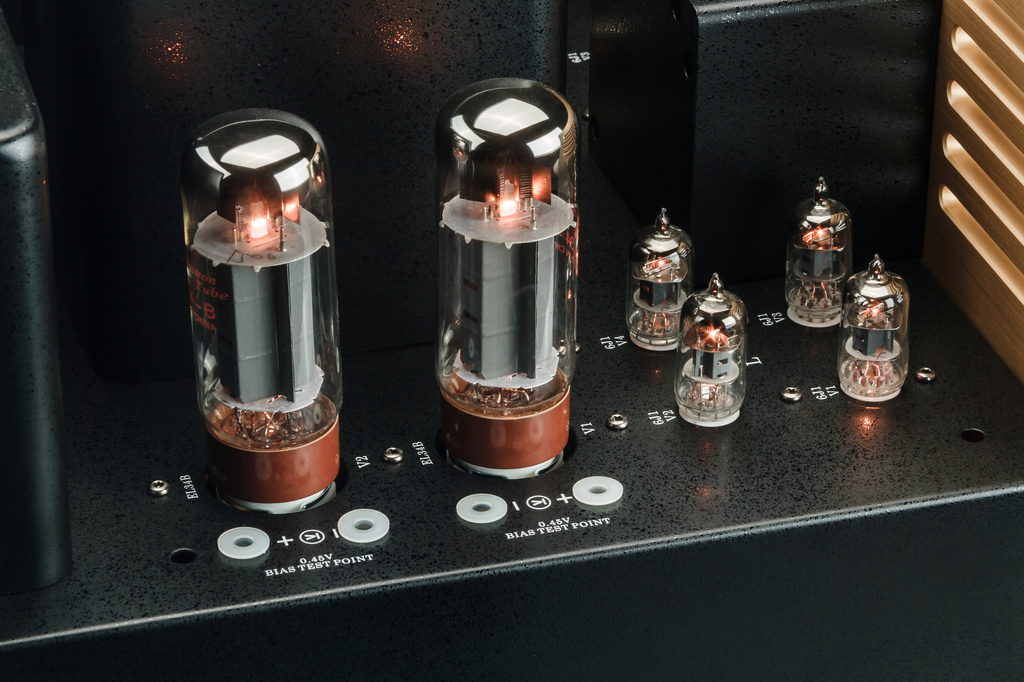

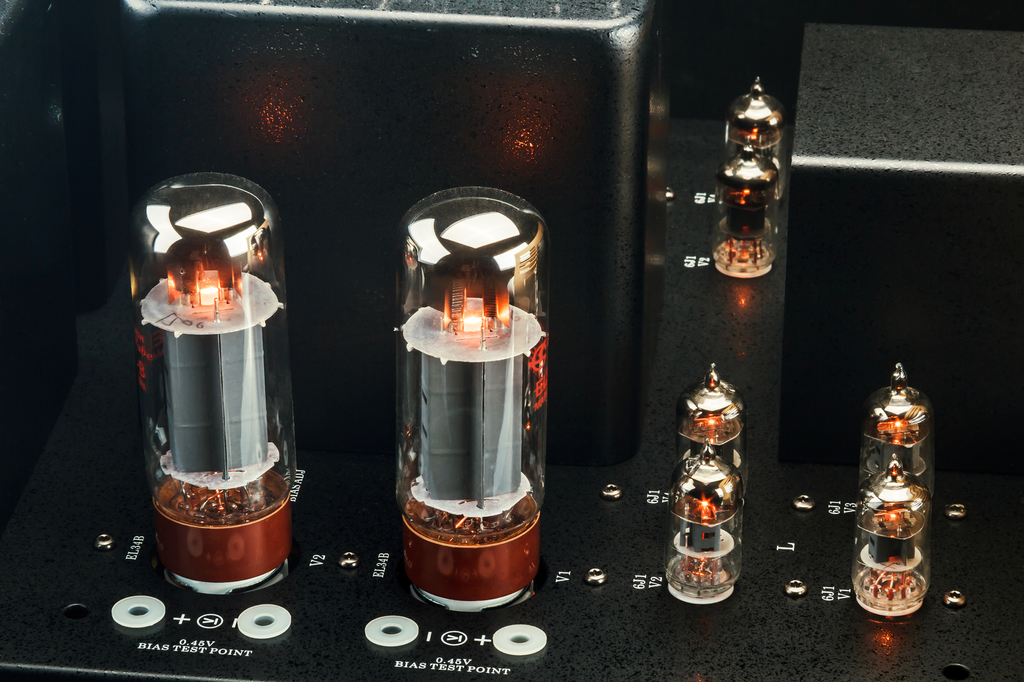

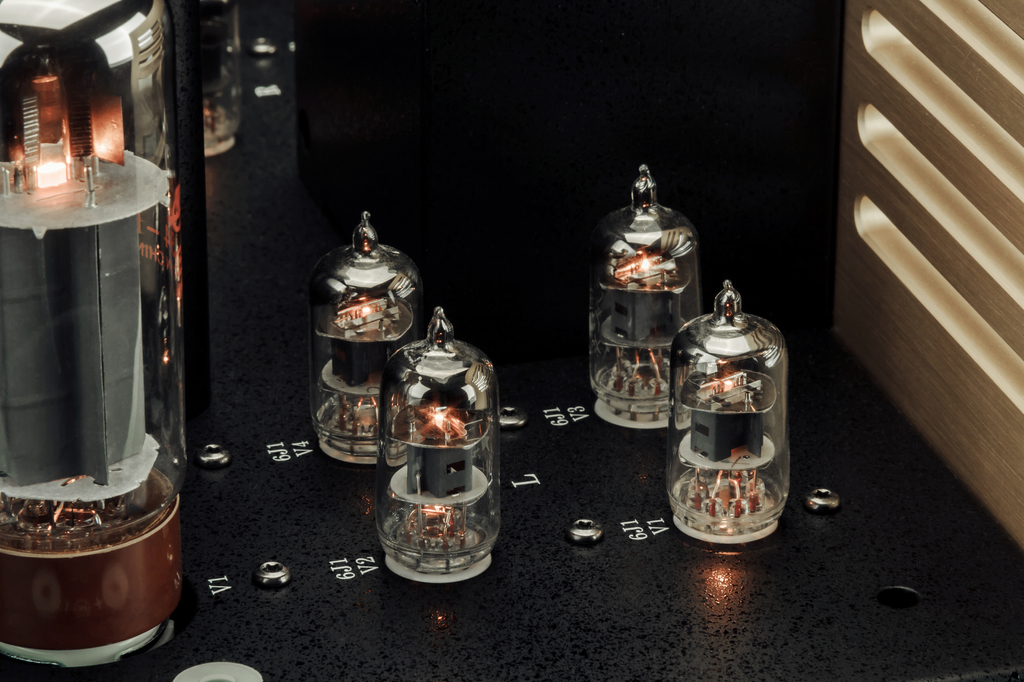

The PAE080A packs 4 EL34s in the final stage while using eight 6J1s for the preamp stage.  The EL34 is a rugged tube and in this audio amp will deliver its signature velvety-smooth-mids.  In particular, the EL34 excels at reproducing horns and female vocals with a silky texture that comes from the best of breed in valve instruments.  The high-gain EL34 tube delivers great clean tone and at the same time offers incredibly powerful mids with equally powerful bass.  The PAE080A does a great job at showcasing the beautiful sound, the EL34 is capable of.  In addition to that, the PAO80A is a handsome piece of equipment that will make for a proud addition to your sound system.

Criteria

PAE080A

Output Power

50W + 50W (8 Ω)

Harmonic Distortion

< 1.6% (1KHz)

SNR

> 88dB (A-weighted)

Frequency Response

5 Hz - 75 KHz (-2dB)

Input Sensitivity

< 230 mV (1 KHz)

Load Impedance

4 Ω / 8 Ω (Separate outputs)

Power Consumption

180 W (Typical)

Output Tubes

EL34B (4)

Preamp Tubes

6J1 (8)
